Custom Fields & Viz Types
Custom Fields & Viz Types
nuxt-protokit's built-in field and visualization types cover the most common use cases, but sometimes you need something the module does not ship — a rich text editor, a date range picker, a specialized chart. The extensibility system lets you register custom components without forking or patching the module.
Namespace convention
All extension types use a namespace:name format:
- Built-in types use bare names:
number,text,progress,bar-chart - Extension types must use the colon-separated format:
myapp:rich-text,charts:heatmap
TypeScript enforces this at compile time via a \${string}:${string}`` template literal type — using a bare name for a custom field is a type error.
Reserved namespaces: proto, protokit, nuxt, vue
defineProtokitExtension()
Creates a typed extension bundle. Pass it a namespace, an optional fields map, and an optional vizTypes map:
import MyRichText from '~/components/MyRichText.vue'
const ext = defineProtokitExtension({
namespace: 'myapp',
fields: {
// Registered as 'myapp:rich-text'
'rich-text': { component: MyRichText },
// Async (lazy-loaded on first use)
'date-range': { component: () => import('~/components/MyDateRange.vue') },
},
vizTypes: {
// Registered as 'myapp:heatmap'
heatmap: { component: () => import('~/components/MyHeatmap.vue') },
},
})
Keys inside fields and vizTypes are the short names — the namespace is prepended automatically.
useProtoExtensionRegistry()
Call registerExtension to make the extension available to ProtoForm and ProtoViz:
// plugins/extensions.ts
export default defineNuxtPlugin(() => {
const ext = defineProtokitExtension({ namespace: 'myapp', fields: { ... } })
const { registerExtension } = useProtoExtensionRegistry()
registerExtension(ext)
})
The registry is module-level — all composable calls share the same maps. Registering in a plugin guarantees it runs once before any component renders.
Using extension types in a schema
definePrototype({
key: 'my-tool',
fields: {
body: {
type: 'myapp:rich-text', // namespaced — TypeScript accepts this
label: 'Content',
default: '',
props: {
// Keys from props are passed verbatim as component props
toolbar: ['bold', 'italic', 'link'],
minHeight: 200,
},
},
dates: {
type: 'myapp:date-range',
label: 'Active Period',
default: null,
},
},
visualizations: [
{
type: 'myapp:heatmap',
title: 'Activity Heatmap',
config: {
// config is passed as a :config prop to the viz component
weeks: 16,
data: (ctx) => ctx.derived.activityData,
},
},
],
})
Custom field component interface
A custom field component receives modelValue / onUpdate:modelValue for v-model, plus any keys from props in the field definition:
<!-- components/MyRichText.vue -->
<script setup lang="ts">
defineProps<{
modelValue: string
toolbar?: string[]
minHeight?: number
}>()
const emit = defineEmits<{ 'update:modelValue': [value: string] }>()
</script>
<template>
<!-- your editor here -->
</template>
Custom viz component interface
A custom viz component receives config (the config object from the schema) and context (the full ComputeContext):
<!-- components/MyHeatmap.vue -->
<script setup lang="ts">
import type { ComputeContext } from '@websideproject/nuxt-protokit'
defineProps<{
config: Record<string, any>
context: ComputeContext
}>()
</script>
<template>
<!-- your chart here, driven by config and context -->
</template>
protokit:register-extension hook
Nuxt module authors who ship companion extension packages can use this hook to add component and import directories at build time, without requiring users to manually configure anything:
// modules/my-charts/index.ts
import { defineNuxtModule, addComponentsDir, addImportsDir, createResolver } from '@nuxt/kit'
export default defineNuxtModule({
meta: { name: 'my-charts' },
setup(_options, nuxt) {
const resolver = createResolver(import.meta.url)
nuxt.hook('protokit:register-extension', ({ addComponentsDir, addImportsDir }) => {
// These dirs are registered via nuxt-protokit's own setup,
// so components are available globally and composables are auto-imported.
addComponentsDir(resolver.resolve('./runtime/components'))
addImportsDir(resolver.resolve('./runtime/composables'))
})
},
})
Users of your companion module can then use namespace:name types in their schemas with zero extra configuration.
Full example

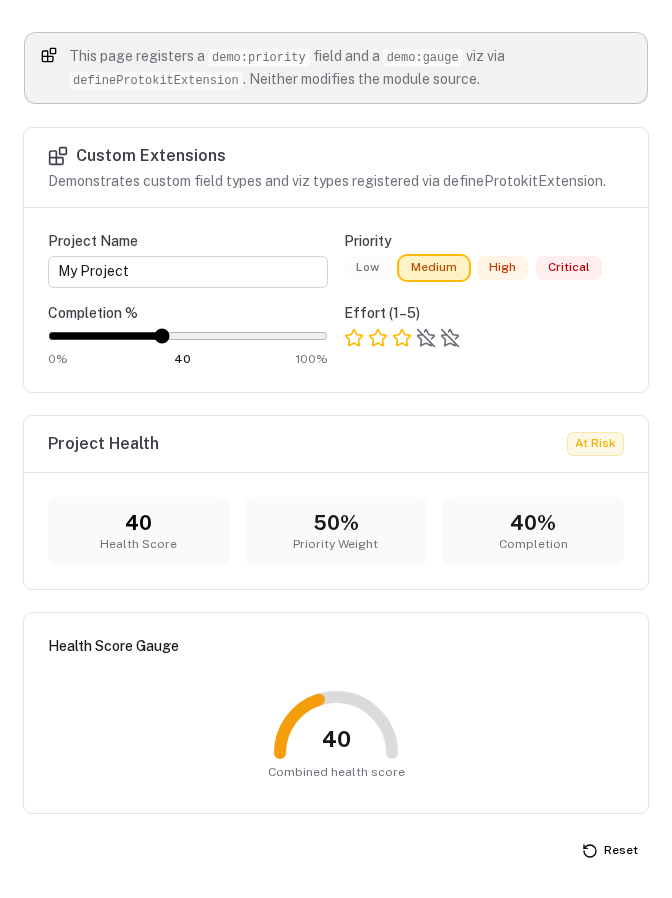

The playground includes a working demo at /custom-extensions that registers a demo:priority field (a colored priority selector) and a demo:gauge viz (an SVG gauge chart) entirely at the page level — no plugin, no module config.
// pages/custom-extensions.vue
import CustomPriorityField from '~/components/CustomPriorityField.vue'
import CustomGaugeViz from '~/components/CustomGaugeViz.vue'
const ext = defineProtokitExtension({
namespace: 'demo',
fields: {
priority: { component: CustomPriorityField },
},
vizTypes: {
gauge: { component: CustomGaugeViz },
},
})
const { registerExtension } = useProtoExtensionRegistry()
registerExtension(ext)
const schema: PrototypeSchema = {
fields: {
priority: {
type: 'demo:priority', // custom field
label: 'Priority',
default: 'medium',
props: { options: ['low', 'medium', 'high', 'critical'] },
},
},
visualizations: [
{
type: 'demo:gauge', // custom viz
title: 'Health Score',
config: { value: (ctx) => ctx.derived.healthScore, max: 100 },
},
],
}
